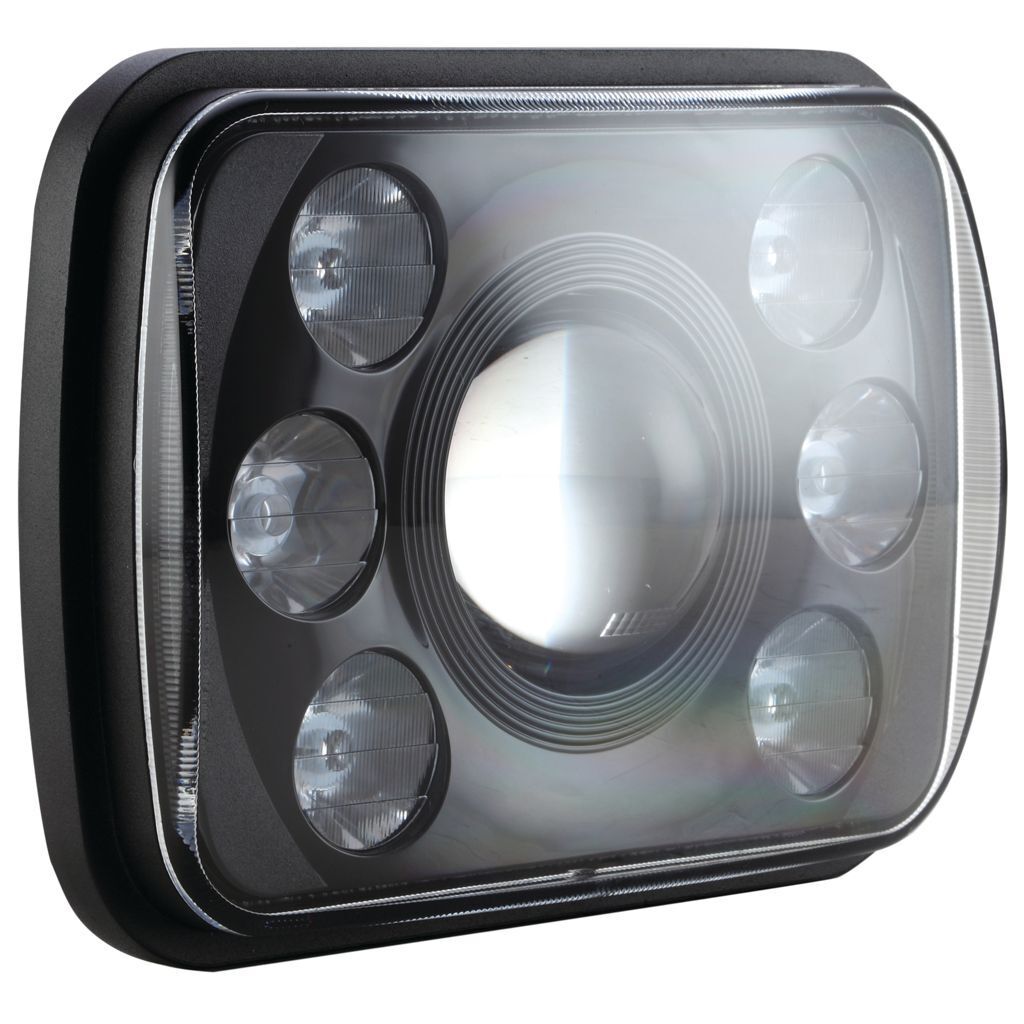

Ignite Rectangle LED HeadLamp 9 - 36 Volt 65 Watt

200mm x 142mm or 7" x 5" - Black Fascia

High / Low Beam and Position Lamp

6 x 10 Watt High Intensity LumiLEDs LED's for Position Lamp and High Beam

1 x 5 Watt High Intensity Philips LED for Low Beam

High Beam: 3,900 Raw Lumens and 3,315 Effective Lumens and 6,500K

Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 6,500K

Current Draw: 4.1amp @ 12 Volt and 1.8amp @ 24 Volt

Proprietary Polycarbonate TIR Optical System Reflector Technology for High Beam and Position Lamp.

Lexan Polycarbonate Lens and Reflectors

Integrated Electronic Thermal Management (ETM)

Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent

Replaces Headlights, either Semi Sealed or Sealed Beams

150mm Lead with H4 Connector

Over and Under Voltage Protection

Reverse Polarity Protection

UV, Water and Shock resistant

50,000 Hours LED Lifespan

ECE R112, R7, DOT, SAE and CE Approved

IP68 and IP69K Rating

Environment Temperature: -40°C ~ +60°C

IWH030 Adaptor Harness for Negative Switched Vehicles
