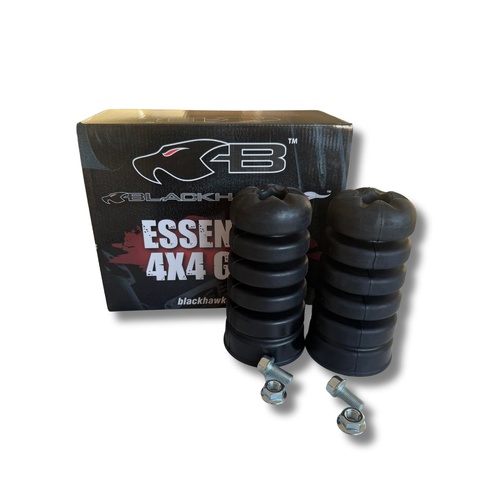

Blackhawk 4x4 Progressive Compression Extended Rubber Bump Stop Pair.

This Bump Stop is derived from an OE design. Blackhawk4x4 have identified the current OE & Aftermarket offerings fall short of delivering the complete solution.
We can now offer a truely progressive rate, genuinely extended Bump Stop when installed into the following applications:

  • OE Nissan Patrol GQ/GU Front (35mm extended @ 7kN)
  • OE Nissan Patrol GQ/GU Rear (57mm extended @ 7kN when using the BS002 mounts)
  • OE Toyota Landcruiser 80/105 Series Rear (33mm extended @ 7kN)
  • Nissan Navara NP300 Rear (46mm extended @ 7kN)
  • Universal Applications (113mm compressed height @ 7kN)

Our re-engineered design increases energy absorption while offering less kinetic energy reducing the resultant rebound of the suspension when returning from full compression (full bump) which is a common side effect of other designs. They dont bounce!

Some of the design features include:

  • Contact face has been engineered to offer a progressive entry to the damping force for improved ride comfort.
  • Premium quality natural rubber construction.
  • Side furrows have been remodelled to minimise rebound and increase durability.
  • Overall length increased to provide increased final height whilst not limiting progressive nature.

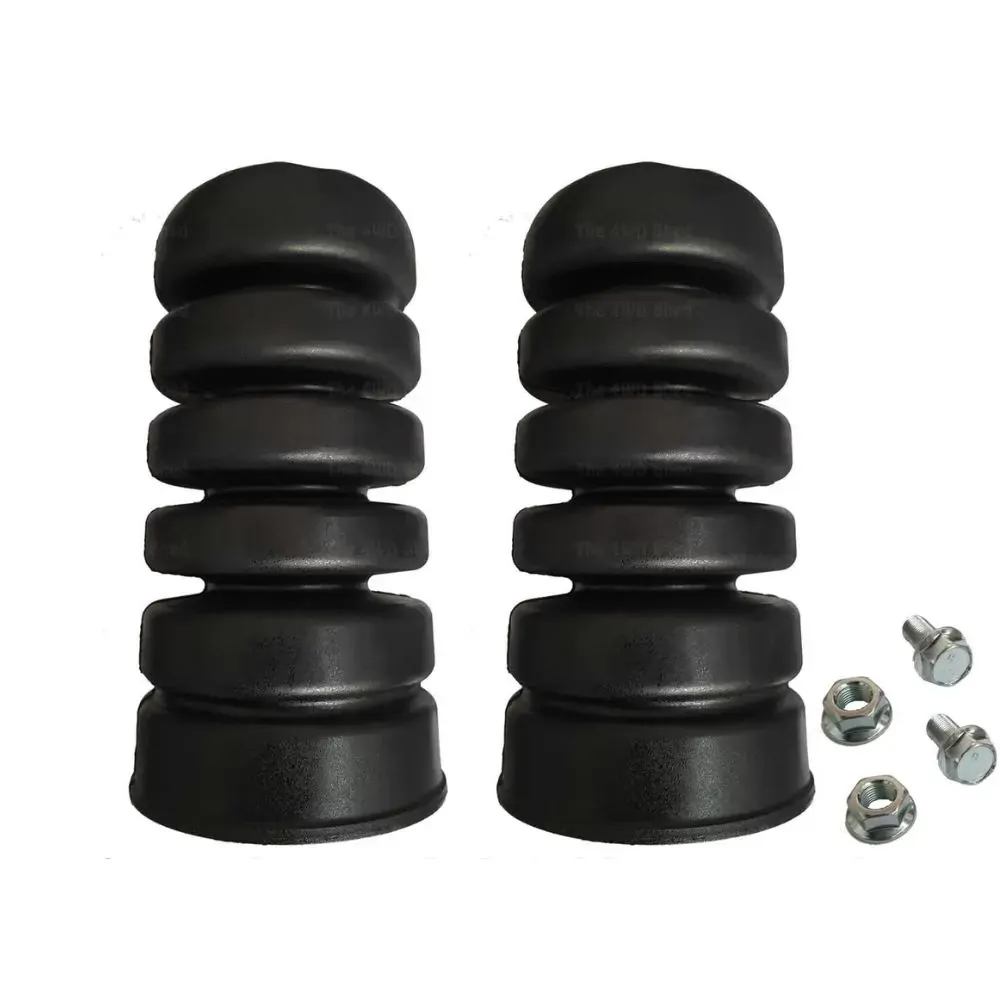

  • Supplied with Flange head M12 bolt & M12 Flange nut to complete the mounting solutions in most applications.
  • Firm Duro in line with OE designs.

The below graph illustrates the height vs load of the Blackhawk bump stop when compared to OE examples:

Load (kN) Load (kg) Patrol OE (Rear Patrol OE (Front) 80 Series OE Blackhawk 80
7 713.79 57 78.6 80.7 113.7
20 2039.4 48 56.6 53.7 82.7

*measured with a NATA calibrated load cell.



Nissan Patrol rear applications are designed to be used along with the BS002 Bump Stop plates. Also available as a matched PAIR in a kit which includes both bump stops & mounts.

Length 180mm

(S0524R-BH2)

SKU S0524R-BH2
Brand Blackhawk 4X4
Shipping Weight 2.0000kg
