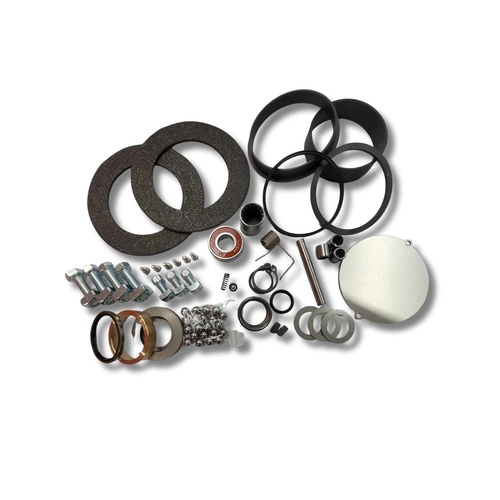

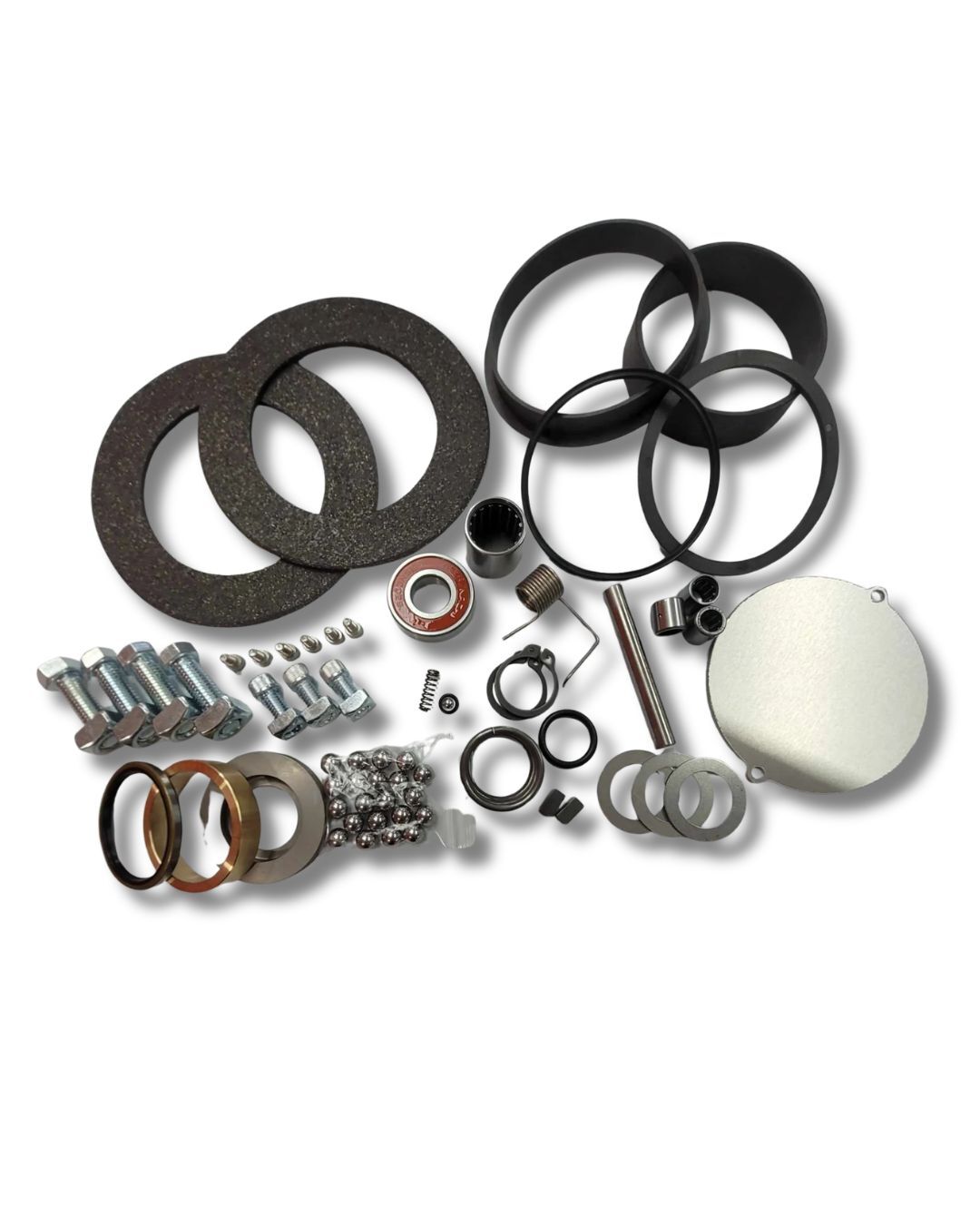

The Highmount Guy Complete Ultimate Rebuild Kit For The Warn 8274

This is the exact rebuild kit we use on every Warn 8274 winch we build in-house - no shortcuts, no missing pieces, no cheap substitutes.

If you’re tearing an 8274 down properly and want it rebuilt to as-new (or better) condition, this kit has absolutely everything required to bring your winch back to its original glory and reliability.

From bearings and bushes to brake components, seals, springs, and hardware - every known wear item is covered. Perfect for full restorations, competition rebuilds, or preventative overhauls on winches that see real work.

Kit Includes:

Brake components

• 2 × Heavy duty brake pads

• 2 × Brake shaft keys

• 1 × Heavy duty return spring

• 1 × Heavy duty brake pawl spring

• 1 × Brake shaft O-ring

• 1 × Brake shaft support bearing

• 2 × Brake shaft circlips

• 1 × Spring collar

• 21 × Ball bearings

• 1 × Bronze bush

• 1 × Oil seal

• 3 × Shims

Lower housing

• 1 × Quad ring seal

• 1 × Lower housing bush

• 1 × End support bush

• 1 × Stepped drum bush

Top housing & motor support

• 1 × Top housing main shaft

• 3 × Top housing bearings

• 1 × Motor armature input shaft bearing

Freespool & hardware

• 1 × Freespool lever rebuild kit
  (heavy duty spring, O-ring, ball bearing)

• 4 × Freespool lever screws

• 2 × Support plate screws

Mounting & reinforcement

• 1 × Mount kit (4 square nuts, 4 bolts)

• 1 × Top hat bolt-down kit (3 square nuts, 3 bolts)

• Stainless steel support cover
